Jun 27, 2011

Basic Enterprise Web Service Security Concepts




In the (near) past, security was handled by the user interface.  The user interface acted as the sole entry point to the application, and therefore all application security was oriented around user permissions.

Added web services is like having great locks on your front door but opening all the windows in your house.  Lots of entry points, each of which needs security.

There’s a few basic enterprise web service security concepts that need to be understood to understand web service security.

Web service security may operate from a user context, an application context, or both.

User Context: Application 1 includes in the (web) service request to application 2 information about the user who performed an action causing the request. Application 2 then decides if the service is permitted based on the user requesting it in application 1.

This requires applications 1 and 2 to have a common user security framework (application 2 has to recognize application 1’s user and be able to check if that user is authorized to request the service operation being requested.)

User Validation – How can application 2 know that the user sent by application 1 has been validated by application 1? One answer would be to send through the user’s password, but application 1 rarely has access to the password (as it may be under the control of an external security system such as Microsoft Active Directory), and sending a password in a message has it’s own security risks.

A solution frequently select is Single Sign On software. This is integrated into both applications 1 and 2, and when the user logs in gives the application a “user token” instead of user information. This user token can then be passed in the message, and application 2 can simply ask the Single Sign On utility if the user token is valid and active (is the user still logged in).

If applications 1 and 2 have no common user context, no shared user base or shared security source, then user context security can’t be used.  Rather, the best that can be done is application 1 can pass along the name or ID of the user who performed a function resulting in the web service request, and application 2 can store it (for logging or auditing purposes), but can’t check any sort of permissions (as the user is unknown to application 2).

Application Context: Is application 1 allowed to activate a particular service in application 2? Is application 1’s test environment allowed to activate that service in application 2’s production environment? (probably not.)

Application context is about whether the source of the request (the source from a program / code / environment perspective) is allowed to request the action being asked from the destination (program and environment).

Enforcement: Some ESB’s (Enterprise Service Buses) have internal features to enforce some of this type of security. (Some require add on modules.) However, even if the ESB is enforcing this type of security, the end points of the requests (the service providing systems) must also be protected and have service security enforcement. Otherwise, what is to stop a developer (or hacker that gets into the internal network) from directly accessing a product business web service from a workstation or laptop? (Nothing.) Further, services are intentionally designed to be easy to use and understand (therefore security through obscurity may no longer help.)

Complete enforcement is best done using SOA security tools. These will either include an agent on each end point or route all services through security enforcement gateways (with the end points only accepting requests via the gateways).  It is possible to create your own security enforcement function in front of services (such as with IBM Websphere where a “handler” can be inserted in the Web Service engine), but is generally not recommended (as you would have to recreate it for each technology exposing services – which the vendor’s provide.)

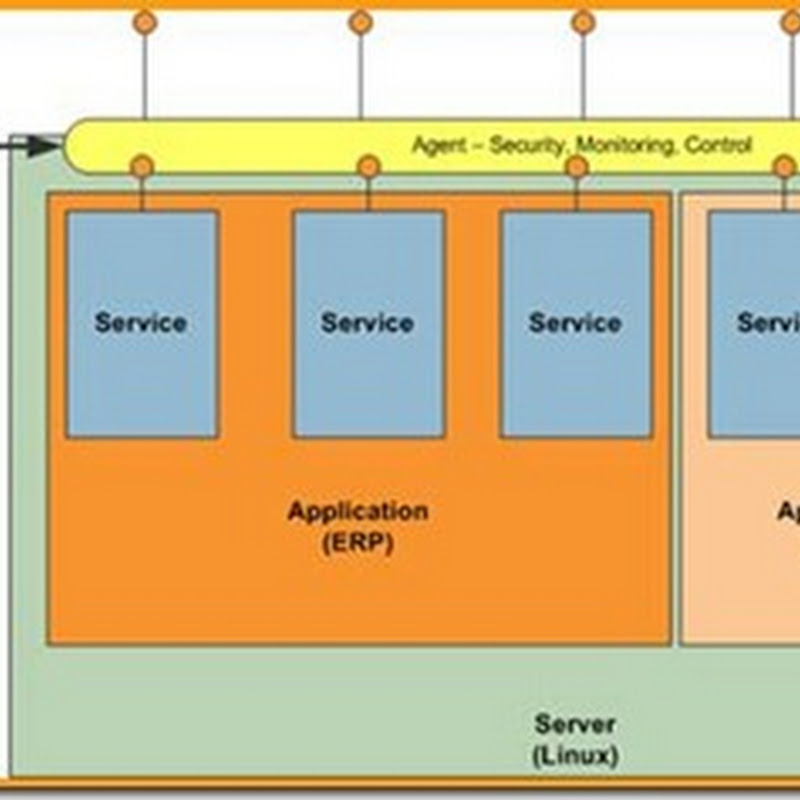

Agent Based Security Model

clip_image002



Gateway Based Service Security Model

clip_image004
